泰克Tektronix IsoVu光隔离探头TIVH02

品牌
泰克Tektronix

型号
TIVH02

◆ 带宽高达 1GHz;
◆ 差分电压高达 ±2500V;
◆ 共模电压60kV;
◆ 共模抑制比高达 160 dB (100,000,000:1);

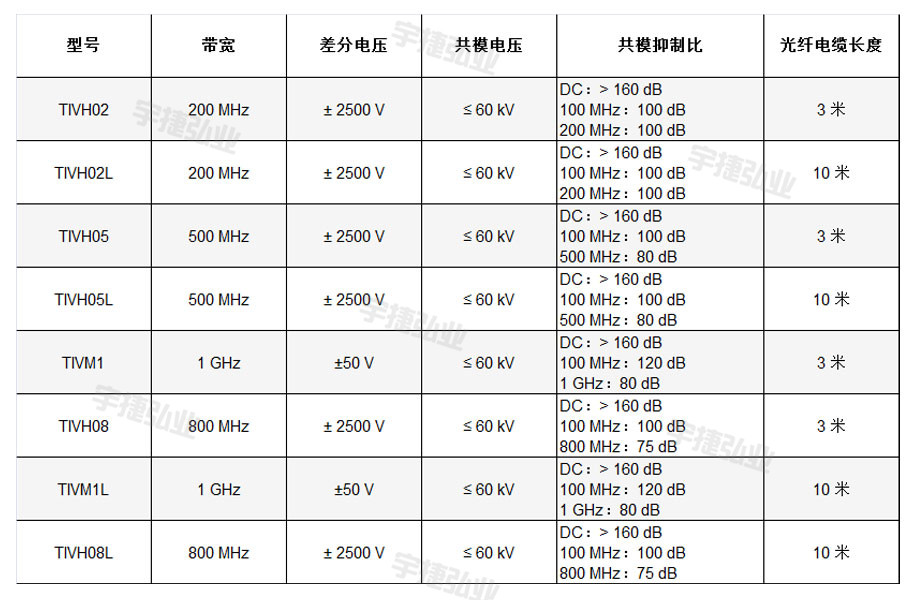

◆ 型号:TIVH02;TIVH02L;TIVH05;TIVH05L;TIVM1;TIVH08;TIVM1L;TIVH08L。

分享到:
TIVH02

  IsoVu ® 探头具有业内领先的 1 GHz 带宽、160 dB 或 100,000,000:1 的共模抑制比、60 kV 共模电压、± 2500 V 大差分范围和极佳探头负载,是适合解决当今严苛功率测量挑战的工具,比如高压侧 Vgs 测量。

       The Tektronix TIVM and TIVH Series IsoVu™ Measurement Systems offer galvanically isolated measurement solutions for accurately resolving high bandwidth, differential signals up to ±2500 V in the presence of large common mode voltages with the best in class common mode rejection performance across its bandwidth.

a2
Features and benefits
  • Bandwidths from DC to 1 GHz
  • 100 Million to 1 (160 dB) Common Mode Rejection from DC up to 1 MHz
  • 10,000 to 1 (80 dB) Common Mode Rejection at 1 GHz
  • 60 kV peak Common Mode Voltage
  • Up to ±2500 V Differential (DC + pk AC)
  • Up to ±2500 V offset range
  • Output clamping
  • Safety certified
  • DC and AC input coupling
Applications
  • Half/Full Bridge designs using GaN, SiC, IGBTs
  • Floating measurements
  • Power Converter design
  • Power Device evaluation
  • Switching Power Supply design
  • Inverter design
  • Motor Drive design
  • Electronic Ballast design
  • EMI
  • ESD
  • Current shunt measurements
  • Remote probing capability

Product Description

       The TIVM and TIVH Series (IsoVu) products can be used on most Tektronix oscilloscopes with the TekVPI interface and on MSO/DPO70K series oscilloscopes with the TCA-VPI50 adapter. IsoVu utilizes an electro-optic sensor that converts the electrical signal from the sensor tip cables to an optical signal, which electrically isolates the device-under-test from the oscilloscope. IsoVu incorporates four separate lasers, an optical sensor, five optical fibers, and sophisticated feedback and control techniques. The sensor head, which connects to the test point, has complete electrical isolation and is powered over one of the optical fibers (No batteries required). IsoVu is an ideal solution for users making the following measurements:

  • Differential measurements in the following conditions:
    • Complete galvanic isolation is required
    • High common mode voltage
    • High frequency common mode interference
    • High frequency measurements
  • Measurements in high EMI environments
  • EMI compliance testing
  • ESD testing
